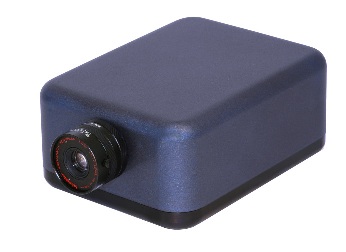

Portable Vis/NIR
Spectral Imaging System
汎叡科技推出
AOI工業機器視覺檢測專用
Hyperspectral相機
相機內交掃描技術讓您更加方便使用
不需搭配電動平台掃描樣本
除了原有影像外
提供400~1000nm光譜資訊
讓AOI更上一層
提供更多種檢測方式
相關規格如下
- Spectral Coverage: 400-1000 nanometers
- Spectral Resolution: 4.6875 nanometer
- Bands: 128
- Dynamic Range: 12-bit
- Pixels per line: 696
- Speed: 30 spatial lines per second
- 23.2 seconds/cube (696 by 520 cube)
- Focal Length: Configurable (based on lens used)
- Lens Type: C-Mount
- Weight: 2.95 Kg (6.5 lbs)
- Dimensions (HWL): 9.5 x 16.8 x 22cm (3.75 x 6.62 x 8.66 in.)
- Power: 12-VDC / 100-240VAC (50-60Hz)
各種相關應用
Machine Vision
- web and surface
- inspection
- agricultural inspection
- chemical analysis
Agricultural
- Precision Farming
- Classification
- Water Stress
- Crop health
Scientific
- Microscopy
- Biological analysis
Military
- Target Discrimination
- Identify Friend or Foe
Remote Sensing
- Ground truth
- Material Mapping
歡迎有興趣的客戶來電洽詢
汎叡科技(02)88611687
|
|
|
|
|
|
