Low latency multi-camera video system for teleoperation of Menzi Muck spider excavator
Remote Reality Teleoperation Project
With the technological advancement of wireless communication (5G networks), visualization technologies (Virtual Reality), control units and sensors, it becomes possible to train machine operators in a virtual environment as well as teleoperate into remote locations.
The Robotic Systems Lab from ETH Zurich is working on a project where the goal is to deliver as precise and real experience to the excavator operator, as possible.
The Operator will have all relevant information in the same form as if he was in the cockpit of an excavator.
Furthermore, he/she can receive additional semantic data, which are not available in the excavator, thus making his/her remote work more convenient.
Environment and showcase
Some of the first intended use cases are trade shows presentations and crane operator training in special laboratories.
Trade fares have specific conditions similar to an outdoor environment with changing sunlight and variable humidity.
Menzi Muck AG, the walking excavator manufacturer, in collaboration with ETH Zürich, have demonstrated such remotely operated excavator at Bauma Fair 2019.
The showcase consisted of Menzi Muck simulator set for training of operators (utilizing VR goggles) connected to an excavator located in a different city.

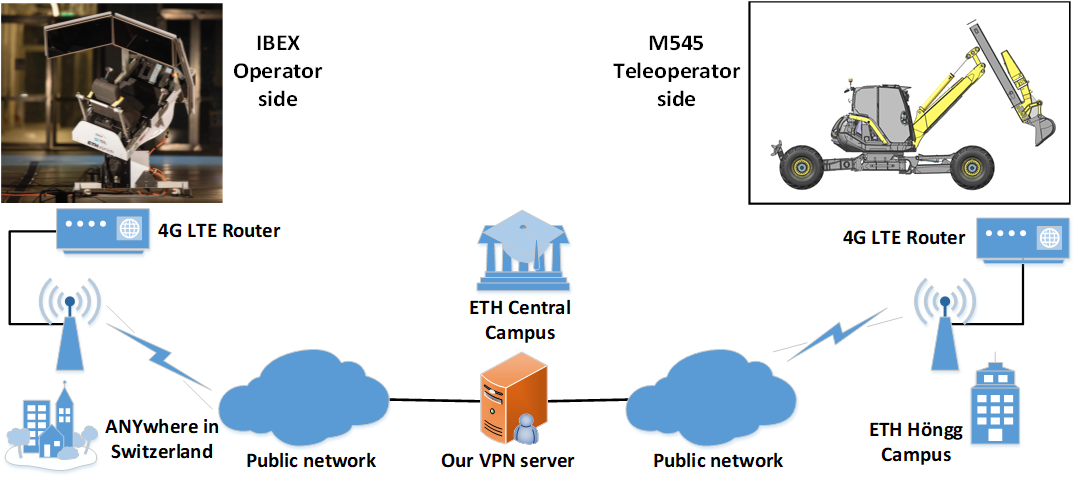

Communication structure of the ideal mobile setup
Outdoor test field at ETH Hönggerberg Campus
The excavator is integrated with Multi-camera vision system based on industrial cameras from XIMEA described in more detail later in the text.
The cameras are using low-latency image processing solution provided from MRTech and running on NVIDIA Jetson TX2 platform.
In the following video, the excavator is located in Zürich ETH Hönggerberg Campus and equipped with industrial wifi and 4G-5G router for streaming and controlling.
Since it is an outdoor environment the exposure of the cameras is dynamically updated.
There are many parts of this system that make it work and are crucial to achieve the highest requirements.
To examine the components utilized for such complex application it was split into several sections covering also reasons for particular solutions
HEAP - Hydraulic excavator for an autonomous purpose
The excavator role was played by HEAP, a customized Menzi Muck M545 Excavator developed for autonomous use cases as well as advanced teleoperation.
The machine has novel force-controllable hydraulic cylinders in the chassis that allow it to adapt to any terrain.
Additionally, HEAP is equipped with sensors necessary for autonomous operation, i.e. LIDARs, IMU, GNSS and joint sensing.
The primary autonomous use is robotic landscaping/excavation investigated in National Centre of Competence in Research (NCCR) Digital Fabrication or dfab.
Sensorized custom Menzi Muck M545 robot called HEAP
Embedded Remote Reality streaming
The ETH team developed an actuated stereo video streaming setup in cooperation with MRTech who are the official System Integrator of XIMEA cameras.
The collaboration with MRTech originated from the strive to achieve full resolution streaming from the cameras using the following Hardware components:
Another part of the setup is IBEX which has been designed for HEAP in order to provide accurate motion and visual feedback.
Particularly, it is a recreation of the HEAP's cockpit that sits on top of a 3-DoF motion platform.
The movement of the excavator chassis and the movement of the platform are coupled in synchronization.
This is essential, especially due to Menzi Muck's unique walking design in which operators heavily rely on their sense of motion to estimate whether all four wheels are in contact with the ground of the terrain or not.
In the initial design of IBEX, the visual feedback is provided via three 2-D monitors that display live camera streams from three different perspectives - the front window and two side windows.
As an extension, the monitors can be replaced with a head-mounted display (HMD) using HTC Vive to completely visually immerse the excavator operator in a remote reality projection of the excavator's true site.
This allows the operator to experience the real sense of immersion, in fact, HMD actually enhances the operator's perception of three-dimensional space.
The image quality, visual acuity and field of view for the operators could even improve once the HTC Vive is replaced with XTAL, which is described below.
The following table gives the specs of the coupling
As mentioned above the first system version was planned in combination with HTC Vive headset.
For virtual reality, next step was to use the XTAL VR headset from VRgineers, which offers 180 degrees field of view with crystal clear picture.
This is provided by the combination of 2x OLED panels with total 5120x1440 resolution, running at 70 Hz.
It is connected to a computer using 1x DisplayPort 1.2, 1x USB and 1x power cord.
XTAL offers the following functionality at the moment :
NVIDIA VR works support
testing eye tracking (30 fps)
hand tracing via embedded Leap Motion sensor
support for AR Tracking, Lighthouse tracking, Optitrack tracking, StarTrack tracking
In the near future the list is about to grow adding:
fast eye tracking (120 fps)
nearside electromagnetic tracking (up to 2 meters - only suitable for seated experiences)
front facing cameras as addon module
Example of an operator where he is mobile around the robot
Compact Teleoperation Backpack solution
Future requirements could be based on operating the excavator remotely without the use of IBEX.
Where the operator wears all the necessary equipment to teleoperate the machine, similar to the picture above.
This setup would also make sense for teleoperating smaller machines which would allow integration of the camera system.
Such a Mobile Operating Station is further considerable for semi/full-autonomous commanding using mixed reality.
Note: Needs to be tested with Ubuntu and ROS. HP has custom NVIDIA drivers for Quadro P5000
The HP Z VR backpack computer can be worn as a standard backpack and has been tested with HTC Vive as well as with XTAL.
It supplies sufficient performance and reliability coming together with exchangeable batteries and desktop docking station. Further specification:
Intel i7 7820HQ(2.9/3.9GHz 4jádra/8vláken)
16 GB RAM DDR4
NVIDIA Quadro P5200
SteamVR+OpenVR on linux
For more information about any part of the system described above please feel free to contact the companies mentioned below.
ETH Zurich, Robotic Systems Lab (RSL)
The Robotic Systems Lab investigates the development of machines and their intelligence to operate in rough and challenging environments.
With a large focus on robots with arms and legs, our research includes novel actuation methods for advanced dynamic interaction, innovative designs for increased system mobility and versatility, and new control and optimization algorithms for locomotion and manipulation. In search of clever solutions, we take inspiration from humans and animals with the goal to improve the skills and autonomy of complex robotic systems to make them applicable in various real-world scenarios.
Specialize in the development of virtual and mixed reality technologies. The Vrgineers are able to provide source codes of DuplexPlayer for certain projects.
ETH suggests to use Vrgineers custom video player called DuplexPlayer, which is capable to play up to 16K stereoscopic video streams.
It is optimized for high resolution footage and supports offline as well as online (real-time) video.
This enables the application of any distortion/fisheye correction filters to the video signal, as well as fine tuning of the performance based on CPU/GPU approach.
Develops cross-platform high-performance image processing software for machine vision systems.
Have worked out a unique embedded platform for unmanned and remote-control systems.
One of the foundation stones is parallel computing, the basis of the pipeline for full image processing.
MRTech is a distributor, technological and VAR partner of XIMEA.
Fastvideo company is a well-known developer of GPU-based image processing SDK.
Fastvideo has implemented the first JPEG codec on CUDA, which is still the fastest on the market.
