Photon etc is developing a new, affordable deep-cooled SWIR camera sensitive from 800 nm to 2.6 μm. Using a stirling micro cooler, our PionIR™ Camera reaches noise levels lower than its TE cooled competitors. First designed to increase the signal-to-noise ratio for faint flux applications such as hyperspectral imaging, this camera is also perfectly suited for spectroscopy, astronomy, or industrial applications.
TECHNICAL SPECIFICATIONS
| Cooling |
Rotary Stirling micro cooler |
| Focal Plane Array (FPA) |
HgCdTe |
| FPA Size |
320 x 256 MCT pixels |
| Pixel Size |
30 µm |
| Spectral Range |
0.8 - 2.6 µm |
| Peak Responsivity |
1.8 A/W @ 2550 nm |
| Full-Well Capacity (e-) |
168 520 (high gain) , 3 539 934 (low gain) |
| Quantum Efficiency |
> 70% |
| Operability (typical) |
> 98% |
| Readout noise (e-) |
124 electrons (high gain) |
| Dynamic Range |
16 bits |
| Cold shield |
square: ƒ1.25 diagonal, ƒ1.76 side |
| Frame Rate |
Up to 47Hz full frame |
| Integration Time |
Variable from 10 µs to 150 ms (low gain) |
| Computer Interface |
Camera Link™ |
| FPA Operating Temperature |
77 K |
| Cool down Time |
16 minutes (ambient air 25ºC) |
| Weight |
3.2 kg |
| Power Supply Requirement |
24 VDC @ 1 A (included power supply) |
| Physical Dimensions |
120 mm x 260 mm x 165 mm (including lens) |
| Ambient Temperature Range |
0°C to 40°C |
|

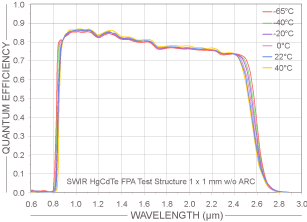

Quantum Efficiency
|
