What is xiX-Xtreme?

Extending the xiX camera series with a 32 Gbit/s backend allows the integration of the newest generation of Sony high-speed sensors.
This product line-up offers the fast global shutter Sony Pregius™ S sensors, reaching the full sensor specifications at the smallest form factor.

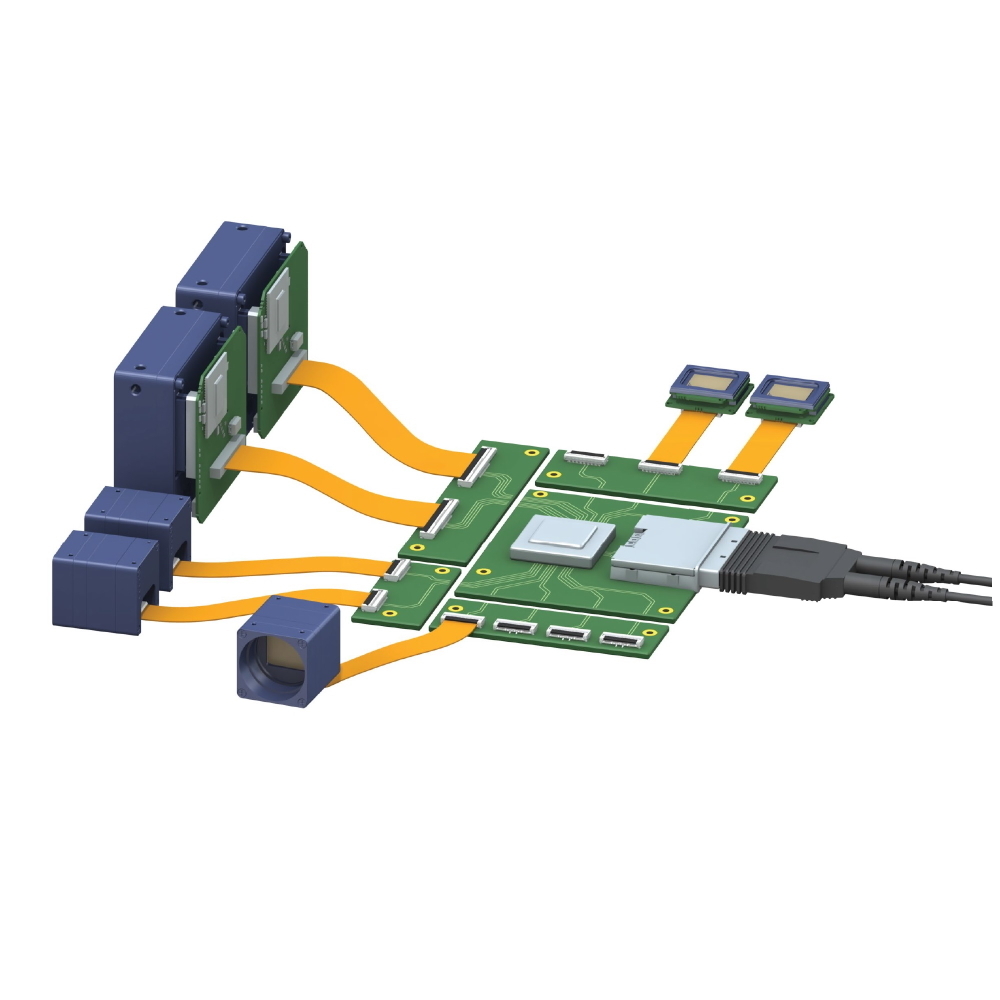

An innovative housing concept with detachable sensor head optimizes heat dissipation to improve the image quality and simplify integration into tight spaces.


  • High resolutions starting from 16.1 Mpix through to 24.5 Mpix

  • Compact cameras with Sony Pregius™ S sensors: IMX532, IMX531, IMX530

  • Global shutter CMOS utilizing backside illumination (BSI) technology

  • Full high-speed potential with 16.1 Mpix streaming at 160 FPS

  • PCIe Gen3 x4 lanes interface offers 32 Gbits bandwidth

  • Lowest latency - PCI Express with almost non-existent delay

  • Support for Windows, macOS, Linux, ARM and various NVIDIA Jetson modules

  • Options to enhance sensor performance by fan and water heatsinks

  • Short interframe time feature - under 1μs ideal for PIV applications

  • HDR ability through dual ADC - high and low gain readout mode

  • Small camera head form footprint - 26 x 26 x 31 mm

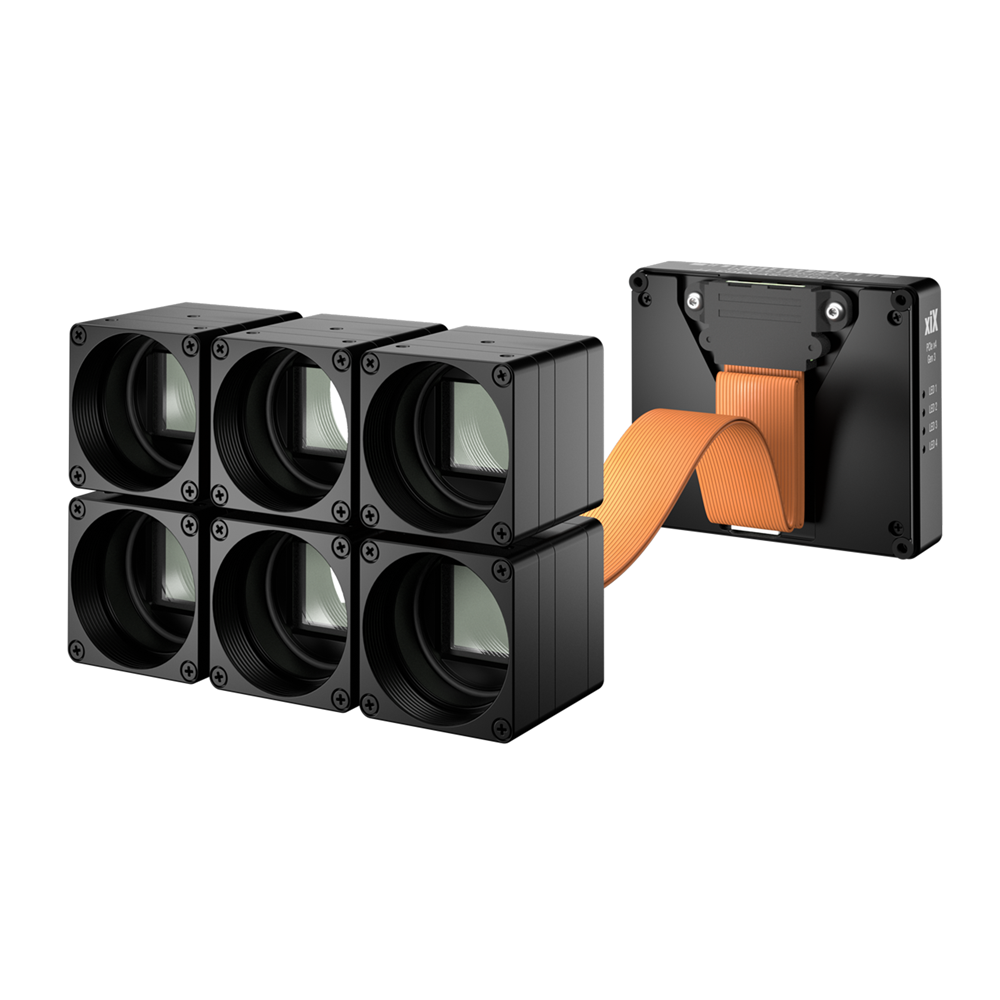

  • Possibility to detach the sensor part of camera from heated body

  • Synchronization and hardware triggering - programmable GPIO

Models and sensors

Model
Resolution
Sensor type
Sensor model
Sensor resolution
Sensor size
Pixel size
Bits
Frame rate
MX161CG-SY-X4G3-FF 16.1 MPix Color  IMX532  5328 x 3040  1.1"  2.74 µm 8,10,12 bits 160 FPS
MX161MG-SY-X4G3-FF 16.1 MPix Monochrome  IMX532  5328 x 3040  1.1"  2.74 µm 8,10,12 bits 160 FPS
MX203CG-SY-X4G3-FF 20.3 MPix Color  IMX531  4512 x 4512  1.1"  2.74 µm 8,10,12 bits 110 FPS
MX203MG-SY-X4G3-FF 20.3 MPix Monochrome  IMX531  4512 x 4512  1.1"  2.74 µm 8,10,12 bits 110 FPS
MX245CG-SY-X4G3-FF 24.5 MPix Color  IMX530  5328 x 4608  1.2"  2.74 µm 8,10,12 bits 107 FPS
MX245MG-SY-X4G3-FF 24.5 MPix Monochrome  IMX530  5328 x 4608  1.2"  2.74 µm 8,10,12 bits 107 FPS
